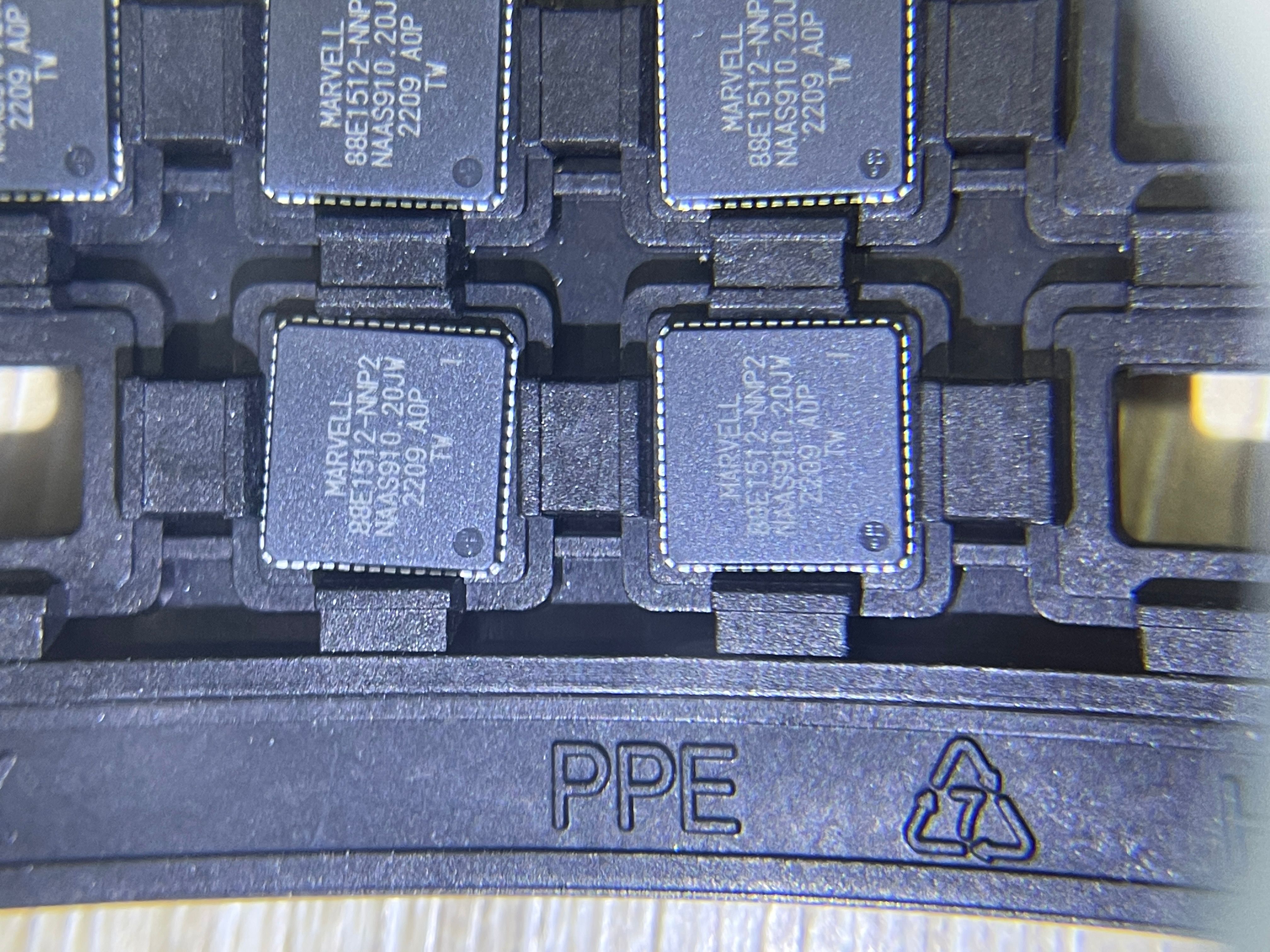

88E1512-A0-NNP2I000

The Marvell 88E1512-A0-NNP2I000 is a high-performance, single-port Gigabit Ethernet transceiver that belongs to the Alaska® family of physical layer (PHY) devices, designed for enterprise, carrier, industrial, and automotive Ethernet applications. This specific model supports both copper and fiber interfaces and provides robust functionality for system developers integrating Ethernet connectivity into their platforms.

Overview and Key Features:

The 88E1512 is compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3az standards, supporting 10BASE-T, 100BASE-TX, and 1000BASE-T operation. It integrates key features such as Energy Efficient Ethernet (EEE), Wake-on-LAN (WoL), cable diagnostics, and auto MDI/MDIX. The transceiver includes a fully integrated 10/100/1000 Mbps Ethernet PHY that can operate over standard Category 5 or better twisted-pair copper cable. It also supports RGMII (Reduced Gigabit Media Independent Interface), SGMII (Serial GMII), and fiber SERDES interfaces, offering a broad range of connection options to the MAC layer.

Detailed Specifications:

1. Standards Compliance:

* IEEE 802.3 (10BASE-T)
* IEEE 802.3u (100BASE-TX)
* IEEE 802.3ab (1000BASE-T)
* IEEE 802.3az (Energy Efficient Ethernet)
* IEEE 802.3z (1000BASE-X via SERDES)
* IEEE 1149.1 (JTAG)

2. Interfaces:

* Copper Media: 10/100/1000BASE-T through RJ-45
* Fiber/SerDes: 1000BASE-X and SGMII support via integrated SERDES
* MAC Interfaces: RGMII, SGMII, SerDes
* MDIO Interface: Supports Clause 22 and Clause 45 for PHY management

3. Power Supply and Consumption:

* Core Voltage: 1.2V
* I/O Voltage: 2.5V or 3.3V
* Typical power consumption: approximately 600–800 mW in active Gigabit operation (varies based on interface and cable length)
* Energy Efficient Ethernet support reduces power consumption during low traffic periods

4. Physical Characteristics:

* Package: 48-pin QFN (7mm x 7mm)
* Operating Temperature Range: Industrial grade, typically -40°C to +85°C
* Part Number: 88E1512-A0-NNP2I000 indicates industrial temperature, no lead (Pb-free), RoHS compliant

5. Advanced Features:

* Auto-negotiation and auto-crossover support (auto MDI/MDIX)
* Cable diagnostics and loopback modes for system validation and troubleshooting
* ESD protection and surge tolerance designed for robust network operation
* Support for Synchronous Ethernet (SyncE) applications
* Support for IEEE 1588v2 Precision Time Protocol (PTP) time-stamping via MAC interface
* Wake-on-LAN (WoL) support for remote system activation

6. Configuration and Diagnostics:

* MDIO registers enable detailed configuration and real-time status monitoring
* Built-in self-test (BIST) and cable diagnostics functions for link health analysis
* LED drivers integrated for link/activity indication

7. Applications:

* Industrial Ethernet switches and routers
* Carrier Ethernet access devices
* Industrial automation systems
* Embedded network appliances and boards
* Automotive Ethernet subsystems (when combined with additional components)

8. Compliance and Environmental:

* RoHS 6/6 compliant
* Pb-free, halogen-free options available
* Fully qualified for long-term industrial and embedded system usage

Device Marking and Ordering:

The suffix "NNP2I000" provides important information about the part:

* "NN": Indicates package and pinout
* "P2": Specifies the PHY option and lead finish (e.g., RoHS compliant)
* "I": Industrial temperature range
* "000": Indicates base configuration or feature set version

Conclusion:

The Marvell 88E1512-A0-NNP2I000 is a versatile and compact Gigabit Ethernet PHY ideal for a wide range of applications requiring robust physical-layer connectivity and high configurability. It offers flexible MAC interfacing options, low power consumption, industrial temperature tolerance, and integrated diagnostic tools, making it suitable for embedded, industrial, and high-availability networking equipment. The device’s support for advanced features like IEEE 1588v2, SyncE, and EEE enhances its applicability in synchronized and energy-efficient network designs.
