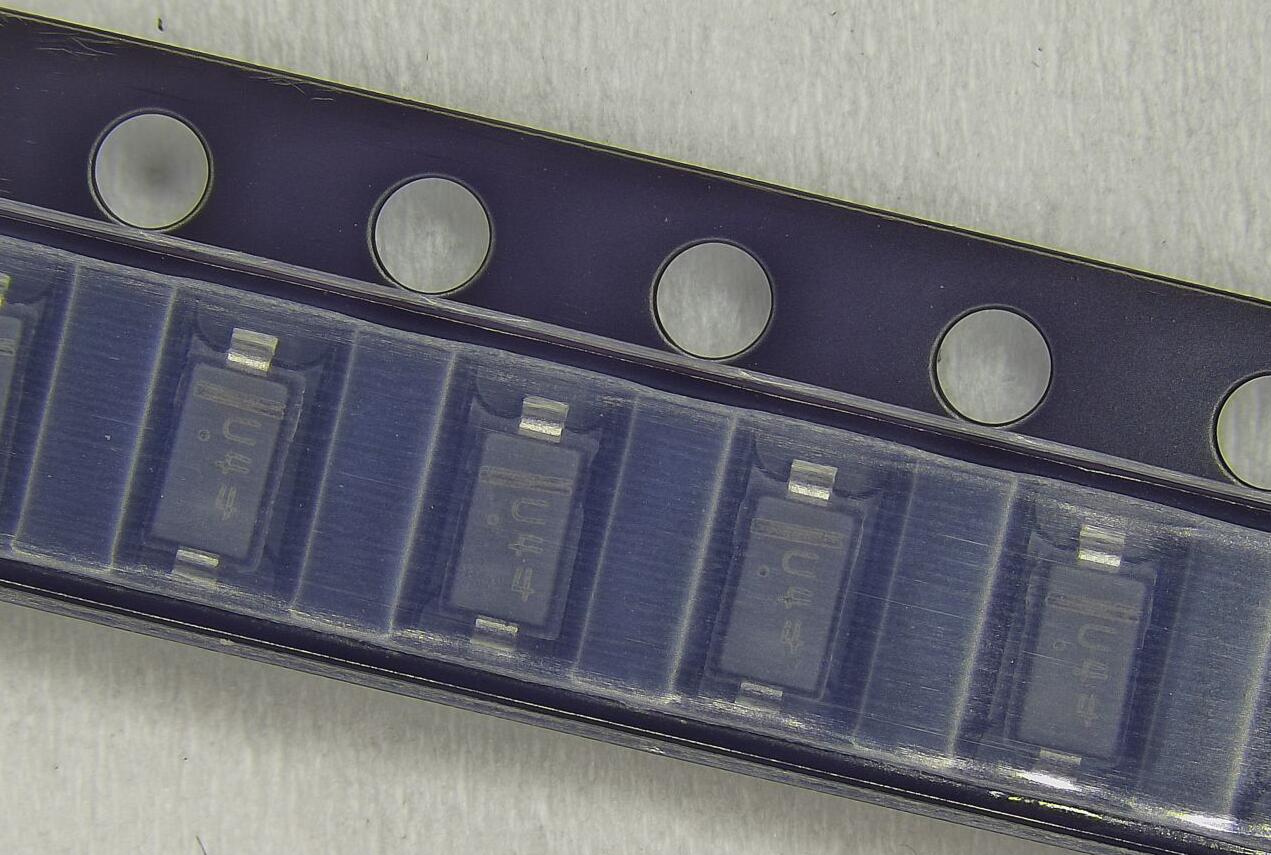

MMSZ5V1T1G

The onsemi MMSZ5V1T1G is a precision Zener diode designed for voltage regulation, reference, and protection applications in electronic circuits. It offers a nominal Zener voltage of 5.1 V and is optimized for low power dissipation, fast response, and tight voltage tolerance. Its compact SOD-123 surface-mount package and robust electrical characteristics make it suitable for a wide range of industrial, consumer, and telecommunications applications, providing reliable voltage clamping, reference, and stabilization functions.

## General Features

The MMSZ5V1T1G is part of the MMSZxxT1G series of Zener diodes, featuring tightly controlled voltage tolerances and low leakage currents. It is intended for low-power voltage regulation and reference applications, where accuracy and stability are critical. The device is designed to operate with continuous current up to 200 mA and offers excellent thermal stability with minimal voltage drift over temperature. Its surface-mount SOD-123 package enables high-density PCB layouts and automated assembly processes.

## Electrical Specifications

* Zener Voltage (Vz): 5.1 V ±5% at Izt (test current = 24 mA)
* Test Current (Izt): 24 mA typical
* Maximum Zener Impedance (Zzt): 7 Ω at Izt
* Maximum Reverse Leakage Current (Ir): 5 μA at VR = 4 V
* Forward Voltage (Vf): 0.9 V typical at If = 10 mA
* Maximum Power Dissipation (Ptot): 500 mW at TA = 25 °C
* Junction Temperature (Tj): –65 °C to +150 °C
* Storage Temperature Range: –65 °C to +150 °C
* Package: SOD-123 surface-mount package for automated PCB assembly
* Operating Temperature Range: –55 °C to +150 °C

## Performance and Stability

* High voltage regulation accuracy ensures reliable performance in low-power reference and clamping circuits
* Low dynamic resistance minimizes voltage variation under load changes, supporting stable output
* Fast response time suitable for transient suppression applications and voltage protection
* Stable operation over a wide temperature range, with minimal temperature coefficient ensuring consistent voltage reference
* Low leakage current supports high-impedance circuit designs without introducing unwanted bias

## Protection and Reliability

* Zener diode provides overvoltage protection for sensitive semiconductor devices and circuits
* Low leakage and tight voltage tolerance enhance reliability in precision applications
* Surface-mount SOD-123 package offers mechanical robustness and high thermal conductivity for effective heat dissipation
* Designed to withstand moderate transient currents without degradation
* Stable junction characteristics maintain performance in industrial and consumer environments
* Compatible with automated pick-and-place assembly processes, reducing handling damage and increasing manufacturing yield

## Typical Applications

* Voltage regulation in low-power analog and digital circuits
* Reference voltage sources for operational amplifiers, ADCs, and DACs
* Overvoltage protection in signal lines and low-voltage power rails
* Clamping applications in communication interfaces, data lines, and sensor systems
* Low-current power supply stabilization for microcontrollers and embedded systems
* Test and measurement equipment requiring accurate, low-power voltage reference

## Key Advantages

* Nominal 5.1 V Zener voltage with tight ±5% tolerance provides precise voltage reference
* Compact SOD-123 package facilitates high-density PCB layouts and automated assembly
* Low Zener impedance ensures stable voltage under varying load conditions
* Fast response to voltage transients enables protection of sensitive components
* Wide operating temperature range allows reliable operation in diverse environmental conditions
* Low leakage current preserves accuracy in high-impedance circuits and reduces standby power consumption

## Design Considerations

* Proper series resistor selection is required to limit current and ensure operation within maximum power dissipation
* Decoupling capacitors may be used to further stabilize voltage in dynamic load conditions
* Placement should consider thermal dissipation and proximity to heat-generating components
* For precision reference applications, thermal gradients and ambient temperature variations should be minimized
* Zener diodes are not intended for high-current rectification; circuit design must ensure currents remain within safe operating limits
* Evaluate derating in high-temperature applications to maintain long-term reliability and performance stability

## Summary

The onsemi MMSZ5V1T1G is a reliable, low-power 5.1 V Zener diode ideal for voltage regulation, reference, and overvoltage protection in industrial, consumer, and telecommunication circuits. With tight voltage tolerance, low dynamic impedance, and low leakage current, it delivers precise and stable voltage control over a wide temperature range. Its compact SOD-123 package supports high-density surface-mount designs and automated assembly processes, while robust thermal and electrical performance ensures long-term reliability. The MMSZ5V1T1G is well-suited for low-power analog and digital circuits, microcontroller systems, and signal protection applications requiring accurate and stable voltage references.
