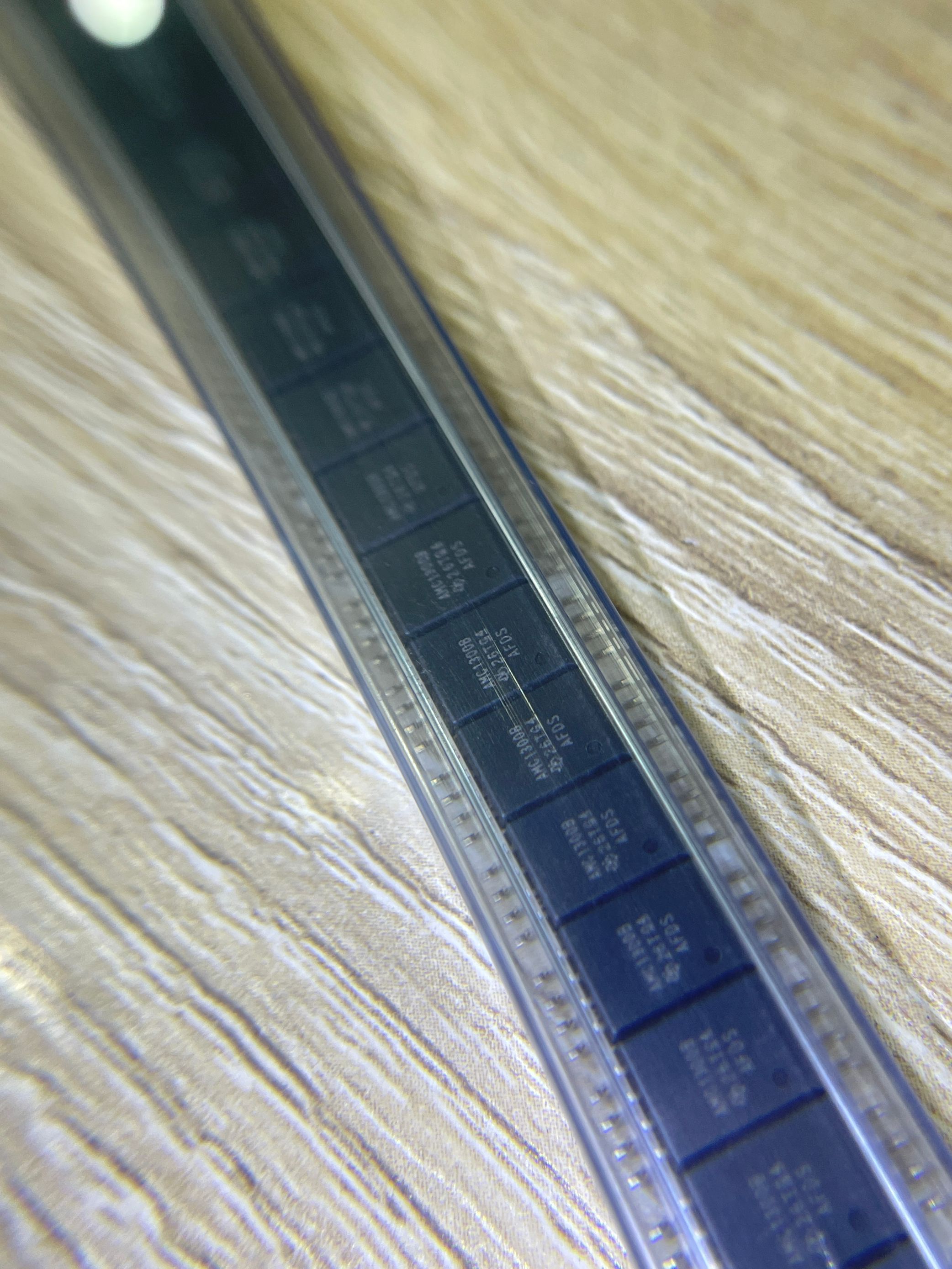

AMC1300BDWV

The Texas Instruments AMC1300BDWV is a precision isolated analog-to-digital converter (ADC) designed for high-performance applications requiring galvanic isolation. This device is particularly suitable for industrial automation, motor control, and power monitoring applications, where accurate measurement of voltage and current is essential. The AMC1300BDWV provides a robust solution for isolating signals while maintaining high accuracy and low power consumption.

### Key Features

1. Isolation: The AMC1300BDWV features a high-voltage isolation barrier, providing up to 5 kV of galvanic isolation. This is crucial for protecting sensitive components from high voltages and ensuring safety in industrial environments.

2. High Precision: With a 16-bit resolution, the AMC1300 delivers high precision in measurements, making it suitable for applications that require accurate data acquisition.

3. Low Power Consumption: The device operates with low power consumption, typically around 1.5 mA, which is beneficial for battery-operated and energy-efficient applications.

4. Wide Supply Voltage Range: The AMC1300 can operate with a supply voltage range of 3.0V to 5.5V, providing flexibility in design and compatibility with various systems.

5. Fast Data Rate: The ADC supports a data rate of up to 1 MSPS (mega samples per second), allowing for rapid signal processing and real-time monitoring.

6. Integrated Reference: The device includes an internal voltage reference, simplifying the design and reducing the need for external components.

7. Differential Input: The AMC1300 features a differential input configuration, which helps to reject common-mode noise and improve measurement accuracy.

8. Temperature Range: The device is specified for operation over a wide temperature range of -40°C to +125°C, making it suitable for harsh industrial environments.

9. Package Type: The AMC1300BDWV is available in a compact 16-pin SOIC (Small Outline Integrated Circuit) package, which is ideal for space-constrained applications.

### Specifications

- Resolution: 16 bits
- Data Rate: Up to 1 MSPS
- Input Voltage Range: ±250 mV (differential)
- Supply Voltage Range: 3.0V to 5.5V
- Power Consumption: 1.5 mA (typical)
- Isolation Voltage: 5 kV (minimum)
- Common-Mode Rejection Ratio (CMRR): 80 dB (typical)
- Total Harmonic Distortion (THD): -100 dB (typical)
- Differential Non-Linearity (DNL): ±1 LSB (maximum)
- Integral Non-Linearity (INL): ±2 LSB (maximum)
- Operating Temperature Range: -40°C to +125°C
- Package Type: 16-pin SOIC

### Applications

The AMC1300BDWV is suitable for a wide range of applications, including:

- Industrial Automation: Used in process control systems for accurate monitoring of voltage and current.
- Motor Control: Ideal for feedback systems in motor drives, ensuring precise control and efficiency.
- Power Monitoring: Suitable for energy metering and power quality analysis in electrical systems.
- Renewable Energy: Used in solar inverters and wind turbine controllers for efficient energy conversion and monitoring.

### Conclusion

The Texas Instruments AMC1300BDWV is a high-performance isolated ADC that meets the demands of various applications requiring accurate and reliable signal measurement. Its combination of high precision, low power consumption, and robust isolation makes it an excellent choice for industrial and power management applications. With features such as an integrated reference and wide operating temperature range, the AMC1300BDWV provides a versatile solution for modern electronic designs.
