LM193JG

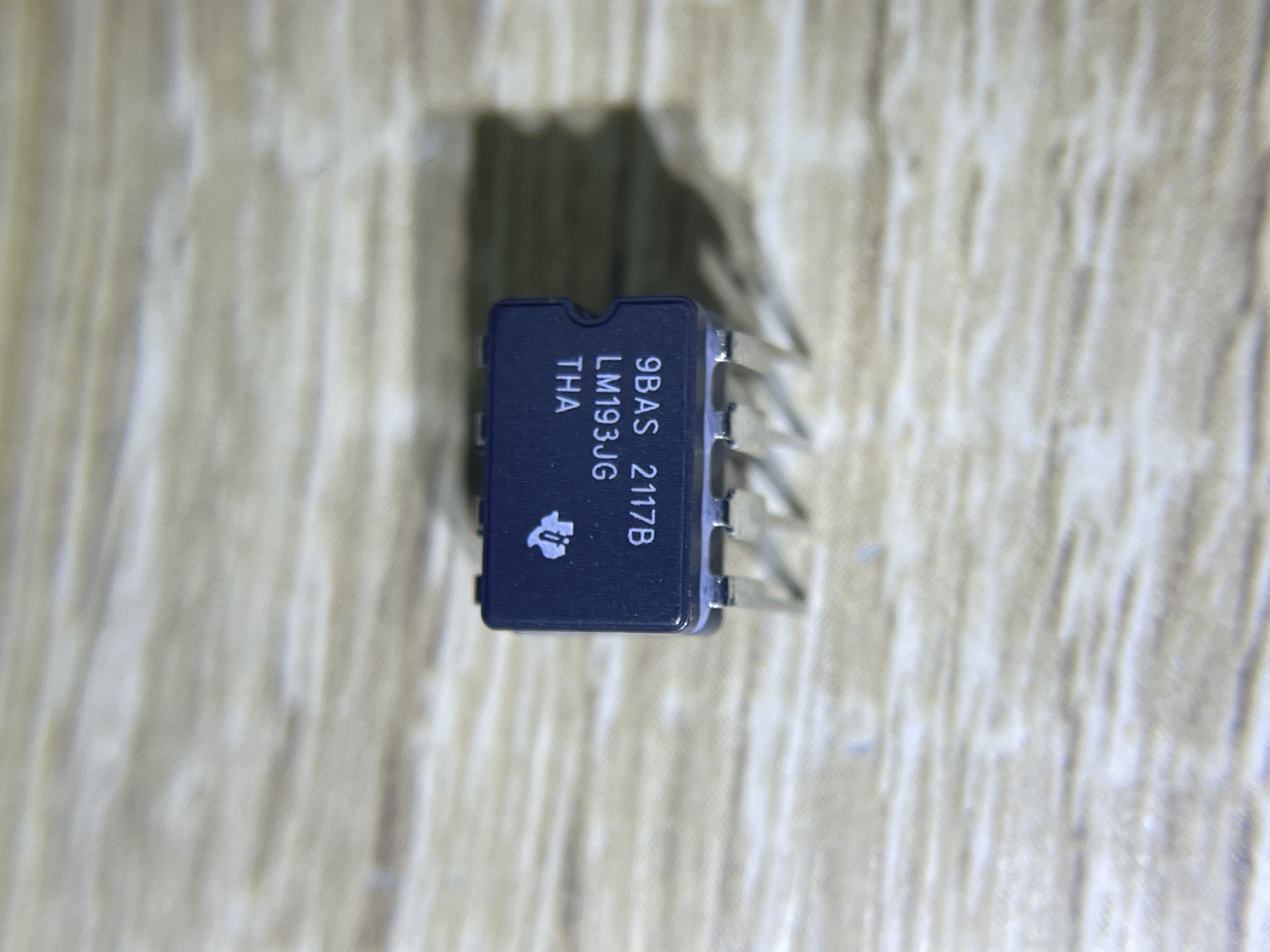

The Texas Instruments LM193JG is a precision voltage comparator designed for a wide range of applications, including signal conditioning, level detection, and analog-to-digital conversion. This device is known for its high performance, low power consumption, and versatility, making it suitable for both industrial and consumer electronics.

### Key Features:
1. Dual Comparator: The LM193JG contains two independent, high-speed voltage comparators, allowing for simultaneous comparison of two different voltage levels.
2. Wide Supply Voltage Range: It operates over a supply voltage range of 2V to 36V, making it adaptable to various power supply configurations.
3. Low Input Offset Voltage: The device features a low input offset voltage of typically 2mV, ensuring accurate voltage comparisons.
4. High Speed: The LM193JG has a fast response time, with a typical propagation delay of 300ns, enabling it to handle high-speed signals effectively.
5. Open-Collector Output: The output is an open-collector configuration, allowing for easy interfacing with different voltage levels and enabling wired-AND logic configurations.
6. Temperature Range: It is rated for operation over a temperature range of -40°C to +125°C, making it suitable for harsh environments.

### Specifications:
- Supply Voltage (V+ to V-): 2V to 36V
- Input Voltage Range: -0.3V to V+ +0.3V
- Input Offset Voltage (VOS): Typically 2mV, Maximum 6mV
- Input Bias Current (IB): Typically 50nA
- Input Offset Current (IOS): Typically 5nA
- Propagation Delay (tPHL, tPLH): Typically 300ns
- Output Voltage High (VOH): V+ - 0.1V (at 4mA)
- Output Voltage Low (VOL): 0.1V (at 4mA)
- Power Supply Current (IS): Typically 1.5mA per comparator
- Common Mode Input Voltage Range: V- to V+ - 1.5V
- Power Dissipation: 500mW (at 25°C)

### Applications:
- Signal Conditioning: The LM193JG can be used to condition analog signals for further processing in various electronic systems.
- Level Detection: It is ideal for detecting specific voltage levels in applications such as battery monitoring and over-voltage protection.
- Analog-to-Digital Conversion: The comparator can be used in ADC circuits to compare input signals against reference voltages.
- Window Comparators: By configuring the two comparators, it can function as a window comparator to detect when a signal falls within a specific range.

### Package Information:
The LM193JG is available in a standard 8-pin dual in-line package (DIP) and surface mount options, making it easy to integrate into various circuit designs.

### Conclusion:
The Texas Instruments LM193JG is a reliable and versatile voltage comparator that offers high performance and low power consumption. Its wide supply voltage range, low offset voltage, and fast response time make it an excellent choice for a variety of applications in both industrial and consumer electronics. Whether used in signal conditioning, level detection, or as part of an ADC circuit, the LM193JG provides the precision and reliability needed for modern electronic designs.
