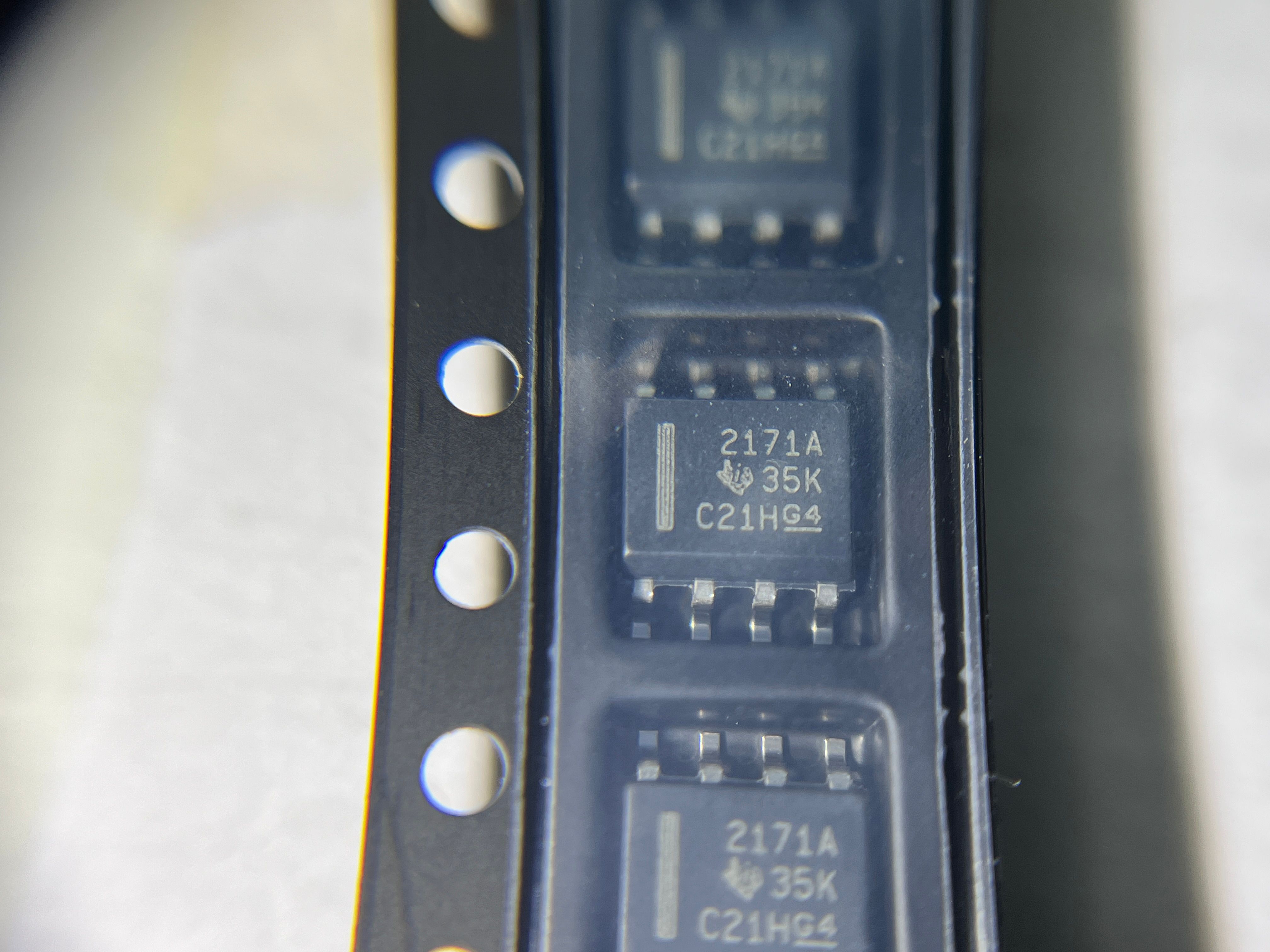

OPA2171AIDR

The Texas Instruments OPA2171AIDR is a precision, low-noise operational amplifier designed for a wide range of applications, including data acquisition systems, medical instrumentation, and industrial control systems. This op-amp is particularly valued for its high accuracy, low offset voltage, and low noise characteristics, making it suitable for high-performance analog signal processing.

### Key Features:

1. Precision Performance: The OPA2171 offers excellent precision with a low offset voltage of typically 50 µV, which is crucial for applications requiring high accuracy.

2. Low Noise: With a low input voltage noise density of 0.1 µV/√Hz at 1 kHz, the OPA2171 minimizes noise interference, making it ideal for sensitive applications such as medical instrumentation and audio processing.

3. Wide Supply Voltage Range: The device operates over a wide supply voltage range from ±2.5V to ±18V, providing flexibility for various circuit designs.

4. Rail-to-Rail Output: The OPA2171 features a rail-to-rail output stage, allowing it to drive loads close to the supply rails, which is beneficial for maximizing dynamic range in applications.

5. High Gain-Bandwidth Product: With a gain-bandwidth product of 1 MHz, the OPA2171 can handle a variety of signal frequencies, making it suitable for both low-frequency and high-frequency applications.

6. Low Total Harmonic Distortion (THD): The op-amp exhibits low THD, ensuring high fidelity in audio and signal processing applications.

7. Temperature Range: The OPA2171 is designed to operate over an extended temperature range of -40°C to +125°C, ensuring reliable performance in harsh environments.

8. Small Package Options: The device is available in various package types, including the 8-pin SOIC and 8-pin VSSOP, allowing for easy integration into compact designs.

### Specifications:

- Type: Precision Operational Amplifier
- Supply Voltage Range: ±2.5V to ±18V
- Input Offset Voltage: 50 µV (typical)
- Input Bias Current: 10 nA (typical)
- Input Voltage Noise Density: 0.1 µV/√Hz (at 1 kHz)
- Gain-Bandwidth Product: 1 MHz
- Output Voltage Swing: Rail-to-Rail
- Total Harmonic Distortion (THD): 0.0005% (typical)
- Common-Mode Rejection Ratio (CMRR): 120 dB (typical)
- Power Supply Rejection Ratio (PSRR): 120 dB (typical)
- Operating Temperature Range: -40°C to +125°C
- Package Options: 8-pin SOIC, 8-pin VSSOP

### Applications:

The OPA2171AIDR is suitable for a wide range of applications, including:

- Data Acquisition Systems: Used in analog front-end circuits for converting real-world signals into digital data.
- Medical Instrumentation: Ideal for applications such as ECG, EEG, and other medical monitoring devices where precision and low noise are critical.
- Industrial Control Systems: Employed in sensor signal conditioning and control loops in industrial automation.
- Audio Processing: Suitable for high-fidelity audio applications, including mixers, amplifiers, and equalizers.
- Instrumentation Amplifiers: Can be used in combination with other components to create high-performance instrumentation amplifiers.

### Conclusion:

The Texas Instruments OPA2171AIDR is a high-performance operational amplifier that excels in precision and low-noise applications. With its wide supply voltage range, rail-to-rail output, and excellent thermal stability, it is an ideal choice for engineers and designers looking for reliable and accurate signal processing solutions. Whether used in medical devices, industrial systems, or audio applications, the OPA2171 stands out as a dependable component that meets the rigorous demands of modern electronic designs.
