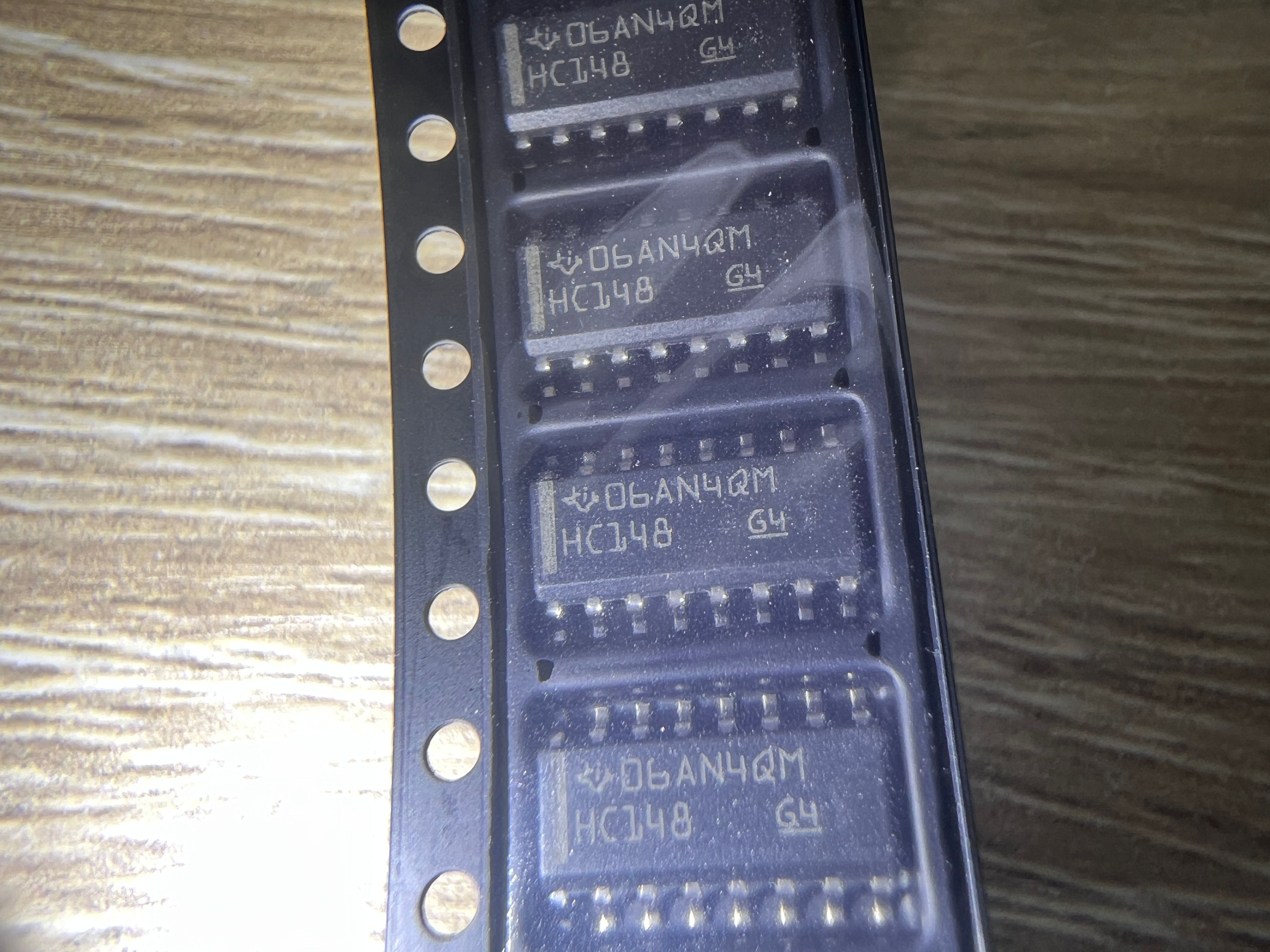

SN74HC148DR

The Texas Instruments SN74HC148DR is a high-speed, 8-line to 3-line priority encoder designed for use in digital applications where data encoding is required. This device is part of the 74HC family, which is known for its high-speed performance and low power consumption. The SN74HC148DR is particularly useful in applications where multiple input signals need to be encoded into a smaller number of output lines, making it ideal for data compression and signal processing tasks.

### Key Features

1. Priority Encoding: The SN74HC148DR encodes eight input lines into a 3-bit binary output. It prioritizes the highest-order active input, ensuring that the output reflects the highest priority input signal.

2. High-Speed Operation: The device operates at high speeds, with a maximum propagation delay of 8 ns at a supply voltage of 5 V, making it suitable for high-frequency applications.

3. Wide Supply Voltage Range: The SN74HC148DR operates with a supply voltage range of 2 V to 6 V, providing flexibility for various system designs and compatibility with different logic levels.

4. Low Power Consumption: The device features low power consumption, with a typical supply current of only 1 µA, making it suitable for battery-powered applications and energy-efficient designs.

5. Active Low Outputs: The outputs of the SN74HC148DR are active low, meaning that the output will be low when the corresponding input is active. This is useful for interfacing with other digital logic devices.

6. Enable Input: The device includes an active low enable input (E) that allows the encoder to be disabled, effectively putting the device in a low-power state when not in use.

7. Wide Operating Temperature Range: The SN74HC148DR is designed to operate over a wide temperature range, from -40°C to +125°C, making it suitable for industrial and automotive applications.

8. Standard Logic Levels: The device is compatible with standard CMOS and TTL logic levels, allowing it to interface seamlessly with a variety of digital circuits.

### Electrical Specifications

- Supply Voltage (VCC): 2 V to 6 V
- Input Voltage (VI): 0 V to VCC
- Output Voltage (VO): 0 V to VCC
- Maximum Propagation Delay: 8 ns (typical at 5 V)
- Input Current: ±1 µA (maximum)
- Output Drive Current: ±6 mA (maximum)
- Operating Temperature Range: -40°C to +125°C
- Power Dissipation: 500 mW (maximum)

### Applications

The SN74HC148DR is suitable for a wide range of applications, including:

- Data encoding in communication systems
- Priority encoding in digital circuits
- Address decoding in memory systems
- Signal processing in control systems
- General-purpose data handling in microcontroller applications

### Conclusion

The Texas Instruments SN74HC148DR is a versatile and efficient 8-line to 3-line priority encoder that provides reliable encoding of multiple input signals in various digital applications. Its high-speed operation, low power consumption, and compatibility with standard logic levels make it an excellent choice for data encoding tasks in a wide range of electronic systems. For detailed information, including application circuits, design resources, and thermal considerations, refer to the official Texas Instruments datasheet for the SN74HC148DR.
