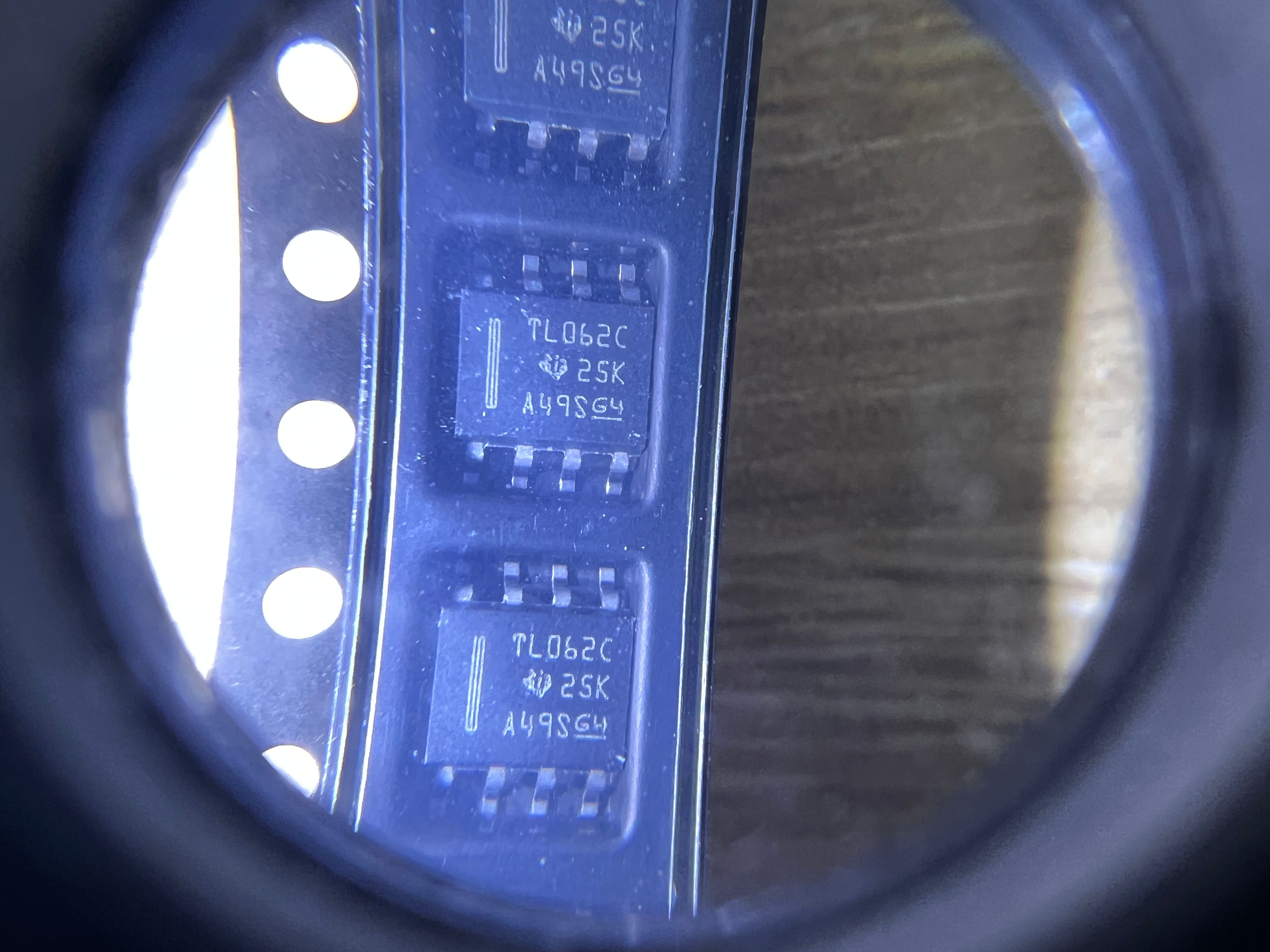

TL062CDR

Introduction to Texas Instruments TL062CDR

The Texas Instruments TL062CDR is a high-performance, low-power operational amplifier (op-amp) designed for a variety of precision analog applications. It is part of the TL0x series of op-amps, offering features like low input offset voltage, high input impedance, and low total harmonic distortion, which make it an excellent choice for both signal conditioning and general-purpose amplification. The TL062CDR is widely used in audio equipment, instrumentation, and control systems due to its high accuracy and reliable performance.

This op-amp is ideal for applications that require low-noise amplification and precise signal processing. The device is packaged in a compact 8-pin Dual In-line Package (DIP) or Surface Mount Package (SMT) form factor, making it easy to integrate into space-constrained systems. The TL062CDR offers a perfect balance of speed, stability, and power efficiency, making it suitable for a broad range of applications.

Key Specifications

* Type: Operational Amplifier (Op-Amp)
* Input Voltage Range: ±15V
* Supply Voltage Range: ±3V to ±18V (or 6V to 36V single supply)
* Quiescent Current (I_q): 1.3 mA (typical)
* Output Voltage Swing: ±12V (at ±15V supply)
* Input Offset Voltage (V_os): 3 mV (max)
* Input Bias Current (I_b): 1.0 nA (max)
* Input Impedance (Z_in): 1012 Ω (typical)
* Common-Mode Rejection Ratio (CMRR): 100 dB (typical)
* Power Bandwidth: 1 MHz (typical)
* Slew Rate (SR): 0.3 V/µs (typical)
* Total Harmonic Distortion (THD): 0.002% (typical)
* Temperature Range: -40°C to +85°C (operating)
* Package Type: 8-Pin SOIC (Surface-Mount) or DIP (Through-Hole)
* Typical Applications: Audio amplification, signal conditioning, precision measurement

Performance and Accuracy

The TL062CDR is designed to provide high precision and stability in signal processing tasks. One of its standout features is its very low input offset voltage of just 3 mV maximum, which ensures minimal error in signal amplification, even in sensitive applications. The low input bias current (1.0 nA max) helps maintain high input impedance, further minimizing power losses in high-impedance circuits.

With a very high input impedance of 1012 Ω, the TL062CDR is well-suited for use with high-impedance sensors and signal sources. This high input impedance reduces loading on the preceding stage, ensuring that the original signal is faithfully amplified without distortion.

The common-mode rejection ratio (CMRR) of 100 dB ensures that the op-amp performs exceptionally well in rejecting common-mode signals, such as noise or interference that may affect the differential signal. This is especially important in instrumentation applications where noise rejection is crucial to maintain signal integrity.

Power Consumption and Efficiency

The TL062CDR offers excellent power efficiency, with a quiescent current of just 1.3 mA, which is ideal for battery-powered applications where minimizing power consumption is essential. This low current consumption ensures that the op-amp will not excessively drain power, helping extend the battery life of portable systems and reducing the overall power consumption in embedded designs.

Additionally, the op-amp can be powered with a supply voltage ranging from ±3V to ±18V (or a single supply voltage from 6V to 36V), providing flexibility for use in a variety of voltage configurations. The wide supply voltage range ensures that the TL062CDR can be used in a range of designs, from low-power battery-operated systems to more robust industrial equipment.

Voltage Swing and Output Characteristics

The TL062CDR is capable of outputting a voltage swing of ±12V when powered with a ±15V supply, making it suitable for driving signals in a wide range of applications. This ensures that the op-amp can drive sufficient voltage levels to external devices, such as speakers, motors, or ADCs in high-precision measurement systems.

The device's low total harmonic distortion (THD) of just 0.002% ensures that it maintains a high level of fidelity in signal reproduction, which is especially critical in high-accuracy audio systems and instrumentation circuits where signal purity is paramount.

Temperature Performance and Reliability

The TL062CDR is rated for an operational temperature range of -40°C to +85°C, making it suitable for a wide variety of environments, including industrial and automotive applications. The wide temperature range ensures that the op-amp will perform reliably in both extreme cold and hot conditions without compromising on its precision or efficiency.

The device’s robustness and reliability at high temperatures, combined with its low power consumption and precision characteristics, make it ideal for use in automotive control systems, industrial automation, and precision measurement equipment.

Applications

The TL062CDR is used in a wide array of applications, thanks to its low power consumption, high precision, and flexibility in voltage supply configurations. Some of the most common applications include:

* Audio Amplification: The low distortion, low noise, and high accuracy make it ideal for audio equipment, such as audio preamplifiers, tone controls, and audio signal processors.
* Signal Conditioning: The TL062CDR is frequently used in signal conditioning applications, where it amplifies and filters low-level signals from sensors or transducers, such as in medical devices, environmental sensors, and industrial control systems.
* Instrumentation and Measurement Systems: The precision characteristics of the TL062CDR make it a key component in high-accuracy measurement systems, including oscilloscopes, data acquisition systems, and precision voltage references.
* Active Filters: The op-amp can be used in active filters for analog signal processing, including low-pass, high-pass, and band-pass filters in both audio and RF applications.
* Feedback Amplifiers: Its wide bandwidth, low distortion, and precision make it suitable for use in feedback loops in various control and measurement applications.

Packaging and Mounting Options

The TL062CDR is available in a variety of package types, including an 8-pin SOIC (Surface-Mount) and DIP (Through-Hole) packages, making it versatile for both surface-mount and through-hole soldering techniques. This makes the TL062CDR suitable for use in a variety of manufacturing environments, including automated PCB assembly and manual soldering.

The compact form factor allows the op-amp to be used in space-constrained designs, where size and performance are both critical considerations.

Conclusion

The Texas Instruments TL062CDR operational amplifier is a highly reliable and versatile op-amp designed to provide precision, low noise, and low power consumption for a wide range of applications. With its high input impedance, low offset voltage, low bias current, and high CMRR, it is ideal for use in audio, instrumentation, and signal conditioning applications that demand accuracy and minimal distortion. Its low total harmonic distortion and power-efficient design make it an excellent choice for both high-accuracy and power-sensitive systems. Whether used in consumer electronics, industrial controls, or high-performance measurement equipment, the TL062CDR offers a combination of reliability, precision, and efficiency to meet the demands of modern analog designs.
