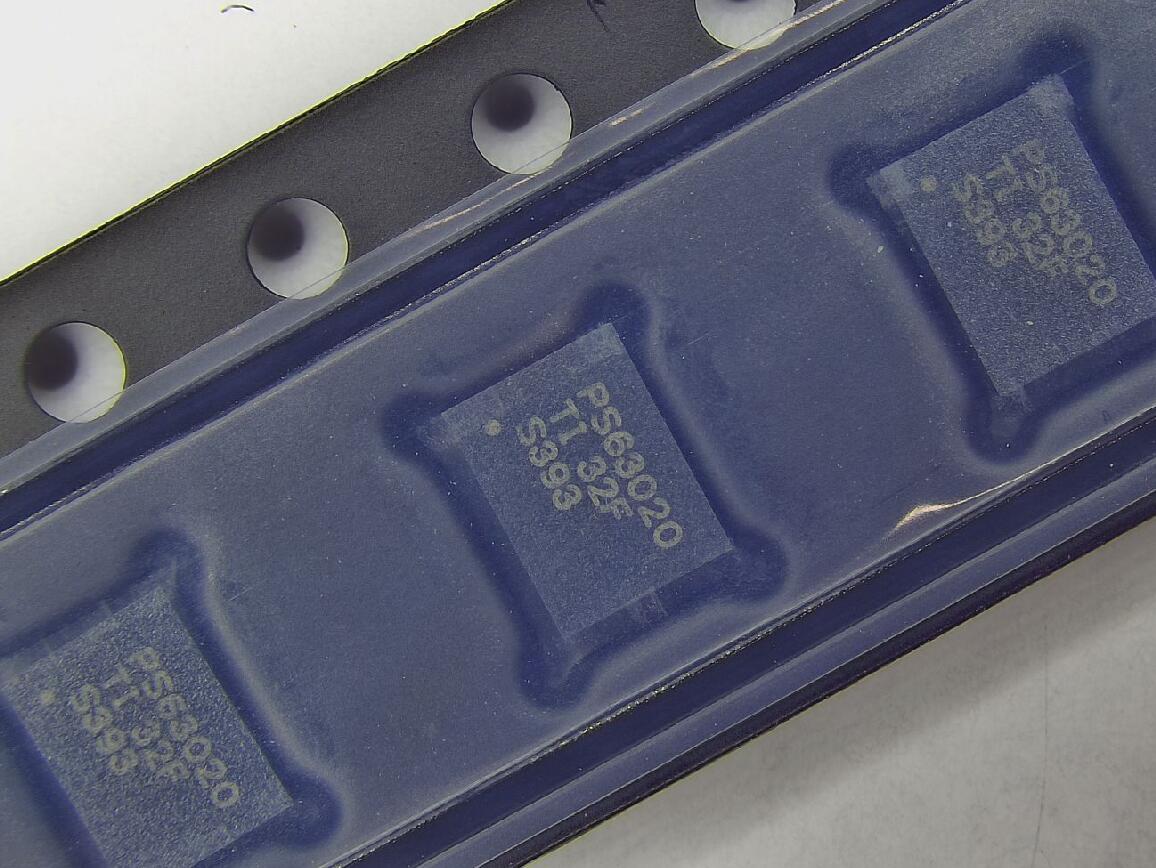

TPS63020DSJR

The Texas Instruments TPS63020DSJR is a highly efficient, integrated step-up/step-down DC-DC converter designed for a wide range of applications, including portable devices, battery-powered systems, and other electronics that require efficient power conversion. This device is known for its ability to provide a stable output voltage across a wide input voltage range while maintaining high efficiency, which is essential in applications where power consumption is critical. Below is a detailed introduction to the device, including its specifications and key features.

### Overview

The TPS63020DSJR is a member of the TPS63020 family, specifically designed to support applications where power needs to be efficiently converted from one voltage level to another. It utilizes a buck-boost architecture, meaning it can efficiently step up or step down the input voltage to maintain a consistent output voltage. This feature is particularly beneficial in systems powered by batteries with voltages that may fluctuate or fall below the desired output voltage, as the device can handle a wide range of input voltages.

### Key Features

* Input Voltage Range: The TPS63020DSJR is designed to operate with an input voltage range of 1.8V to 5.5V. This allows the device to be used with a variety of different power sources, including 3.3V and 5V systems, as well as battery-powered devices with a lower voltage.
* Output Voltage: The device provides a selectable output voltage of 3.3V or 5V, making it suitable for various consumer electronics, industrial systems, and other applications requiring stable power supplies.
* Efficiency: One of the standout features of the TPS63020DSJR is its high efficiency, which can be as high as 96%. This is achieved through its integrated switch-mode power conversion, reducing power losses and heat generation. Such high efficiency is crucial in battery-operated systems where power consumption directly affects battery life.
* Low Quiescent Current: The TPS63020DSJR has a low quiescent current of about 30 µA in Power-Down Mode, which helps to preserve battery life when the device is not actively switching.
* Operating Frequency: The device operates at a fixed switching frequency of 2.4 MHz, which helps to minimize the size of external components, such as inductors and capacitors, making the overall system more compact.
* Integrated Features: The TPS63020DSJR integrates multiple features that simplify the design and increase the overall performance of the system. These include internal soft-start, output overvoltage protection, input undervoltage lockout, and thermal shutdown, all of which contribute to its robustness and reliability in various operating conditions.

### Specifications

* Device Type: Buck-Boost Converter
* Input Voltage Range: 1.8V to 5.5V
* Output Voltage: 3.3V or 5V (Fixed)
* Maximum Output Current: 600mA at 3.3V, 500mA at 5V
* Efficiency: Up to 96%
* Operating Frequency: 2.4 MHz (Fixed)
* Quiescent Current: 30 µA (typical in Power-Down Mode)
* Output Overvoltage Protection: Yes
* Input Undervoltage Lockout: Yes
* Thermal Shutdown: Yes
* Package: 10-pin VQFN (Very Thin Quad Flat No-lead) package
* Dimensions: 3mm x 3mm

### Applications

The TPS63020DSJR is ideally suited for a wide range of applications where efficient power conversion is crucial. Some common use cases include:

* Battery-Powered Systems: It can be used in portable devices, such as wearable electronics, smartphones, tablets, and portable medical devices.
* Consumer Electronics: It is useful in gadgets like handheld gaming consoles, smart home devices, and any other consumer electronics requiring efficient power management.
* Industrial Applications: The device can be used in remote sensors, low-power industrial systems, and IoT (Internet of Things) devices where long battery life is essential.
* Point of Load Converters: The TPS63020DSJR is also suitable for use in point-of-load applications where it can provide stable power to other parts of a system that require specific voltage levels.

### Performance Considerations

In terms of performance, the TPS63020DSJR excels in maintaining a consistent output voltage regardless of fluctuations in the input voltage. This makes it especially useful for applications where the input voltage may drop below the desired output level, such as when a battery voltage drops as it discharges. The high efficiency of the converter reduces the power losses and heat generation that would otherwise drain the battery faster or lead to inefficient operation.

The integrated thermal shutdown and overvoltage protection provide additional reliability, ensuring that the device operates within safe limits under a variety of conditions. Its low quiescent current ensures minimal drain on the battery when the device is idle, which is particularly important in energy-conscious applications.

### Conclusion

The Texas Instruments TPS63020DSJR is a versatile, high-efficiency DC-DC converter that provides step-up and step-down functionality in a compact, reliable package. With its wide input voltage range, high efficiency, and low quiescent current, it is an excellent choice for battery-powered and portable applications. The integrated features like thermal shutdown, undervoltage lockout, and output overvoltage protection further enhance the robustness and reliability of the device in demanding environments. Its efficient power conversion and compact design make it ideal for modern, energy-efficient electronic systems.
