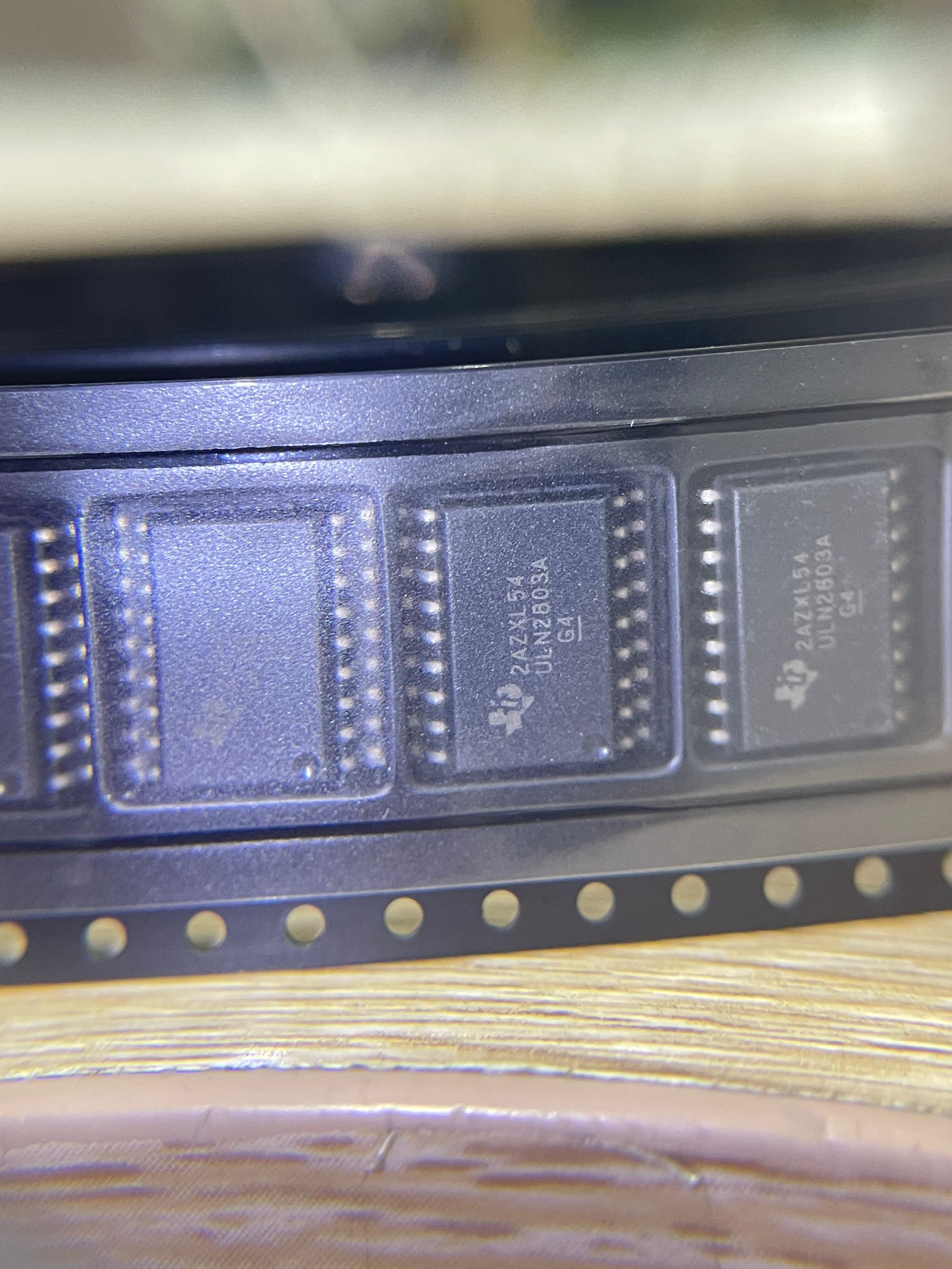

ULN2803ADWR

The Texas Instruments ULN2803ADWR is a high-voltage, high-current Darlington transistor array designed to drive inductive loads, such as relays, motors, solenoids, and lamps, in various embedded system and industrial control applications. The ULN2803A is part of a family of Darlington transistor arrays, commonly used in systems where a microcontroller or low-voltage logic circuit needs to control high-power loads. It is widely utilized in automated systems, robotics, telecommunications, industrial automation, and consumer electronics.

This device includes seven Darlington transistor pairs that allow the user to drive multiple inductive loads with a single IC. It integrates diodes for flyback protection, which makes it particularly well-suited for inductive load control, where back-emf (electromotive force) can be problematic.

### Product Overview:

The ULN2803ADWR is a 7-channel high-current Darlington transistor array designed for driving high-power loads in various applications. It operates by receiving input signals from low-voltage logic (e.g., TTL, CMOS, or microcontroller outputs) and amplifying those signals to drive high-current, high-voltage loads. It features built-in flyback diodes to protect against voltage spikes, making it ideal for use in controlling relays, motors, and other inductive devices.

### Key Specifications:

1. Part Number: ULN2803ADWR
- This part number specifies a Darlington transistor array in a surface-mount package (SOIC-18), which is suitable for compact, high-density PCB designs.

2. Channels:
- The ULN2803A consists of 7 Darlington transistor pairs. Each pair is capable of driving high-voltage, high-current loads independently, with each output driving up to 50V and 500mA per channel.

3. Operating Voltage:
- 7.0V to 50V on the output side
- The ULN2803A can drive loads with voltages up to 50V, making it suitable for a wide range of inductive load applications in industrial or automotive systems.

4. Input Voltage (Logic):
- The input pins are designed for TTL or CMOS logic levels, meaning that the inputs can directly interface with 5V logic (typical for most microcontrollers or embedded systems).
- Input Voltage: 2V to 5.5V (logic-level inputs)

5. Output Current:
- 500mA per channel (max)
- The ULN2803A can handle 500mA output current per channel, which is sufficient for driving many types of electromechanical devices like relays, motors, or solenoids.

6. Output Saturation Voltage:
- Vce(sat) = 1.5V max at 500mA output current
- The output saturation voltage is the voltage drop across the transistor when it is in the on state and conducting current. In this case, it is 1.5V max, which is a typical value for Darlington pairs.

7. Flyback Diodes:
- The ULN2803A includes integrated flyback diodes on each output channel. These diodes are used to protect the transistors from the high-voltage spikes that can occur when switching off inductive loads, such as motors or relays.

8. Power Dissipation:
- Total Power Dissipation: 2W
- The device can dissipate a total of 2 watts of power during operation, which ensures that it remains within safe temperature limits when driving inductive loads.

9. Output Voltage Range:
- 0V to 50V
- The outputs are capable of switching voltages up to 50V, which makes the ULN2803A suitable for controlling larger industrial devices and actuators.

10. Temperature Range:
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -65°C to +150°C
- The device is rated for use in a broad range of temperatures, making it suitable for both industrial and automotive environments where temperature extremes may be encountered.

11. Package Type:
- The device is offered in a SOIC-18 surface-mount package, making it suitable for compact circuit designs and offering ease of integration in modern PCB layouts.

12. Control Logic:
- The input signals are current-sink logic, meaning that the inputs should be connected to a positive voltage source, and the control signals will sink current to ground when activated.
- Low Power Consumption: The device consumes minimal power when the inputs are not active, making it energy-efficient for controlling large systems with multiple actuators.

### Key Features and Benefits

1. High Current Handling:
- The ULN2803A is capable of driving 500mA per channel and can be used to control relays, motors, solenoids, lighting systems, and other inductive loads that require substantial current.

2. Integrated Protection:
- With built-in flyback diodes, the device provides protection against voltage spikes generated by inductive loads when switching them off. This greatly enhances the reliability and longevity of the transistors, as well as the system as a whole.

3. TTL and CMOS Compatible Inputs:
- The input logic is compatible with both TTL and CMOS logic levels, which makes it easy to interface the device with a wide variety of control systems, such as microcontrollers, FPGA boards, or PLCs.

4. Ease of Use:
- The ULN2803A simplifies the task of controlling large, power-hungry loads by integrating multiple Darlington pairs in a single package, eliminating the need for additional discrete components like transistors or diodes for protection.
- This reduces component count and system complexity.

5. Compact and Reliable Package:
- The SOIC-18 package allows for a high-density design, and the ULN2803A is highly reliable for industrial applications, especially where low space is a key consideration.

6. Wide Voltage Range:
- With an output voltage range of up to 50V, the ULN2803A can control a wide variety of actuators and power devices, making it suitable for a wide range of applications, from consumer electronics to industrial automation.

7. Low Power Consumption:
- The ULN2803A uses very little power when the inputs are not active. This ensures that systems using the device remain energy-efficient, which is crucial for battery-powered or low-power applications.

8. Robust and Reliable:
- The device is built to operate in harsh environments, with an operating temperature range from -40°C to +85°C. This makes it suitable for industrial and automotive applications where durability is crucial.

### Applications

The ULN2803A is ideal for a variety of applications, including:

1. Relay Drivers:
- ULN2803A is commonly used for driving electromechanical relays in control systems, such as home automation, industrial automation, and automotive systems.

2. Motor Control:
- It can drive DC motors, stepper motors, and brushless motors by controlling their direction, speed, and operation in systems like robotics, automated machines, and automated test equipment.

3. Inductive Load Switching:
- The flyback diodes integrated into the device make it ideal for switching inductive loads like solenoids and lighting systems, such as high-power lamps in stage lighting or outdoor systems.

4. Signal Switching:
- The ULN2803A can be used in signal switching applications where low-power logic signals need to control high-power switching circuits. These include communication systems or data acquisition systems that require relay-driven switching.

5. Actuator Control in Industrial Systems:
- The device is suitable for controlling actuators such as valves, hydraulic systems, and pneumatic systems in industrial automation and control systems.

6. Automotive Applications:
- It is often used in automotive systems to control relays for lights, fans, horns, and other high-power devices in vehicles.

7. Consumer Electronics:
- The ULN2803A can be used in applications like home appliances, security systems, and automated devices where relay or motor control is needed.

### Conclusion

The Texas Instruments ULN2803ADWR is a high-performance Darlington transistor array that simplifies the control of high-voltage, high-current loads in embedded systems. With seven channels, each capable of driving up to 500mA and supporting an output voltage range up to 50V, it is a versatile solution for controlling relays, motors, solenoids, and other inductive loads. The integrated flyback diodes ensure protection against voltage spikes, while the TTL and CMOS-compatible inputs make it easy to interface with various control systems, such as microcontrollers. Its compact SOIC-18 package, low power consumption, and robust design make it ideal for a wide range of industrial, automotive, and consumer applications.
